General Information

• Item number: 233382
• EAN: 4058075079359
• Brand: Ledvance
• Manufacturer name: DL SLIM SQ210 18W/4000K WT IP20 LEDV
• Lampdirect All-in warranty: 3 years
• Lifespan: 30,000 hours

Technical Information

• Emergency lighting: No emergency lighting
• Tiltable: No
• Technology: LED Integrated
• Replaces: 2x18W
• Wattage: 18W
• Mains voltage: 220-240V
• Dimmable: Not dimmable
• Color code: 840 Cool White
• Light color: 4000K Cool White
• Color rendering (Ra): 80-89 (Good color rendering)
• Light color setting: Single color
• Driver included: Yes
• Beam angle: 120°
• Light output: 1530 lumens
• Lumen/Watt ratio: 85 Lm/W
• Power factor: >0.50
• Installation depth: 50 mm
• UGR - Glare factor: < 28 (suitable for halls and storage areas)
• Optical cover: PC (Polycarbonate)
• Suitable for outdoor use: No
• Product type: LED Downlights

Fixture Information

• Mounting: Flush mounting
• Saw size: 210x210 mm
• IP rating: IP20 - Almost dustproof
• Impact resistance (IK value): IK03 - 0.35 Joule
• Operating temperature: -20°C to +50°C
• Housing: Polycarbonate
• Fixture color: White
• Housing color: White
• Fixture connection: PI (2-pole plug-in connection)
• Product series: DOWNLIGHT SLIM

Dimensions

• Height: 10 mm
• Diameter: 225 mm

Sensor Information

• Sensor type: No sensor

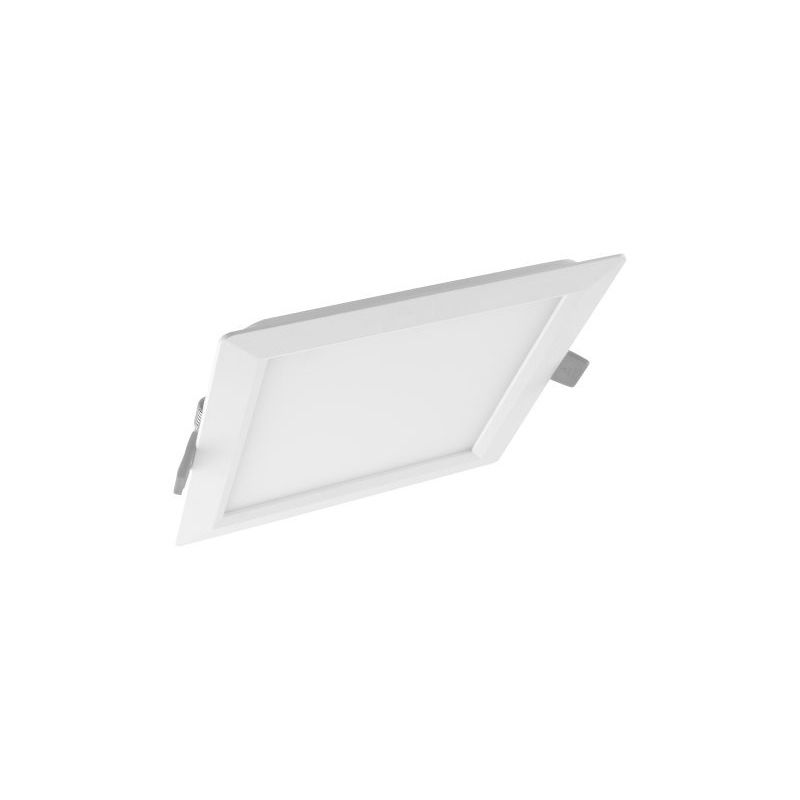

Description Ledvance LED Downlight Slim Square SQ210 18W 1530lm 120D - 840 Cool White

Good to know

• Energy savings of over 50%
• Slim and stylish
• Installation within 2 minutes
• 3-year all-in warranty

Energy savings of over 50%

With the Ledvance LED Downlight Slim Square SQ210, you're guaranteed the quality and durability of premium brand Ledvance for the next 12 years. You'll also save money right away. This square recessed fixture consumes only 18 watts, replacing conventional 2x18 watt fluorescent lighting. This means you achieve the same high light output with half the power, saving you at least 50% on energy. The A++ energy rating and 30,000 operating hours also guarantee the durability of this Ledvance LED Downlight.

Slim and stylish

Thanks to its narrow trim and wide 120-degree beam, this LED Downlight Slim fits perfectly into any suspended ceiling. The polycarbonate housing and 4000K color temperature also make this Ledvance model very versatile. The cool white light promotes focus and concentration, among other things. In that respect, this Ledvance recessed luminaire is ideal for schools and offices. But this Ledvance downlight is also an absolute asset for any shop, hallway, museum, or public space. Although this product is splashproof (IP20), it is not suitable for outdoor installation. You can find the complete overview of the Ledvance SQ square series by clicking this link .

Installation within 2 minutes

Installation is done in no time! First, double-check that the ceiling cutout matches the downlight. In this case, it's 210mm . The driver is already integrated into the fixture, so there's no need to purchase one separately. Furthermore, this Ledvance recessed fixture has two sturdy stainless steel clamps that keep the downlight securely in place. Connect directly to the mains (220-240 volts) using the 2-pin Push-in connector (PI) . Switching to LED lighting from Lampdirect is a great opportunity to say goodbye to your old fluorescent lighting.
